Downlight

Currency

Print Export

AED

Madein China

AM-DLQ02 Series

AM-DLQ0207AM-DLQ0210AM-DLQ0220AM-DLQ0230AM-DLQ0240AM-DLQ0260
Voltage: AC220-240V 50/60Hz
Operation Voltage: AC175-265V
Power: 7W
CRI: ≥80
Luminous:560Lm
Beam Angle: 20°
LED Type: COB
PF: >0.9
Surge: 1.5KV
Material: Aluminum+Glass
Body Size: Ф90x42mm
Hole Size: Ф80mm
Voltage: AC220-240V 50/60Hz
Operation Voltage: AC175-265V
Power: 10W
CRI: ≥80
Luminous:780Lm
Beam Angle: 50°
LED Type: COB
PF: >0.9
Surge: 1.5KV
Material: Aluminum+Glass
Body Size: Ф117x40mm
Hole Size: Ф95mm
Voltage: AC220-240V 50/60Hz
Operation Voltage: AC175-265V
Power: 20W
CRI: ≥80
Luminous:1900Lm
Beam Angle: 100°
LED Type: COB
PF: >0.9
Surge: 1.5KV
Material: Aluminum+Glass
Body Size: Ф160x43mm
Hole Size: Ф140mm
Voltage: AC220-240V 50/60Hz
Operation Voltage: AC175-265V
Power: 30W
CRI: ≥80
Luminous:2850Lm
Beam Angle: 100°
LED Type: COB
PF: >0.9
Surge: 1.5KV
Material: Aluminum+Glass
Body Size: Ф227x65mm
Hole Size: Ф200mm
Voltage: AC220-240V 50/60Hz
Operation Voltage: AC175-265V
Power: 40W
CRI: ≥80
Luminous:3800Lm
Beam Angle: 100°
LED Type: COB
PF: >0.9
Surge: 1.5KV
Material:Aluminum+Glass
Body Size: Ф227x71mm
Hole Size: Ф200mm
Voltage: AC220-240V 50/60Hz
Operation Voltage: AC175-265V
Power: 60W
CRI: ≥80
Luminous:5400Lm
Beam Angle:68°
LED Type: COB
PF: >0.9
Surge: 1.5KV
Material:Aluminum+Glass
Body Size: Ф227x100mm
Hole Size: Ф200mm
QuotationPrint
型号参数
Model NOParameter

Product Advantages

Promotion Introduction

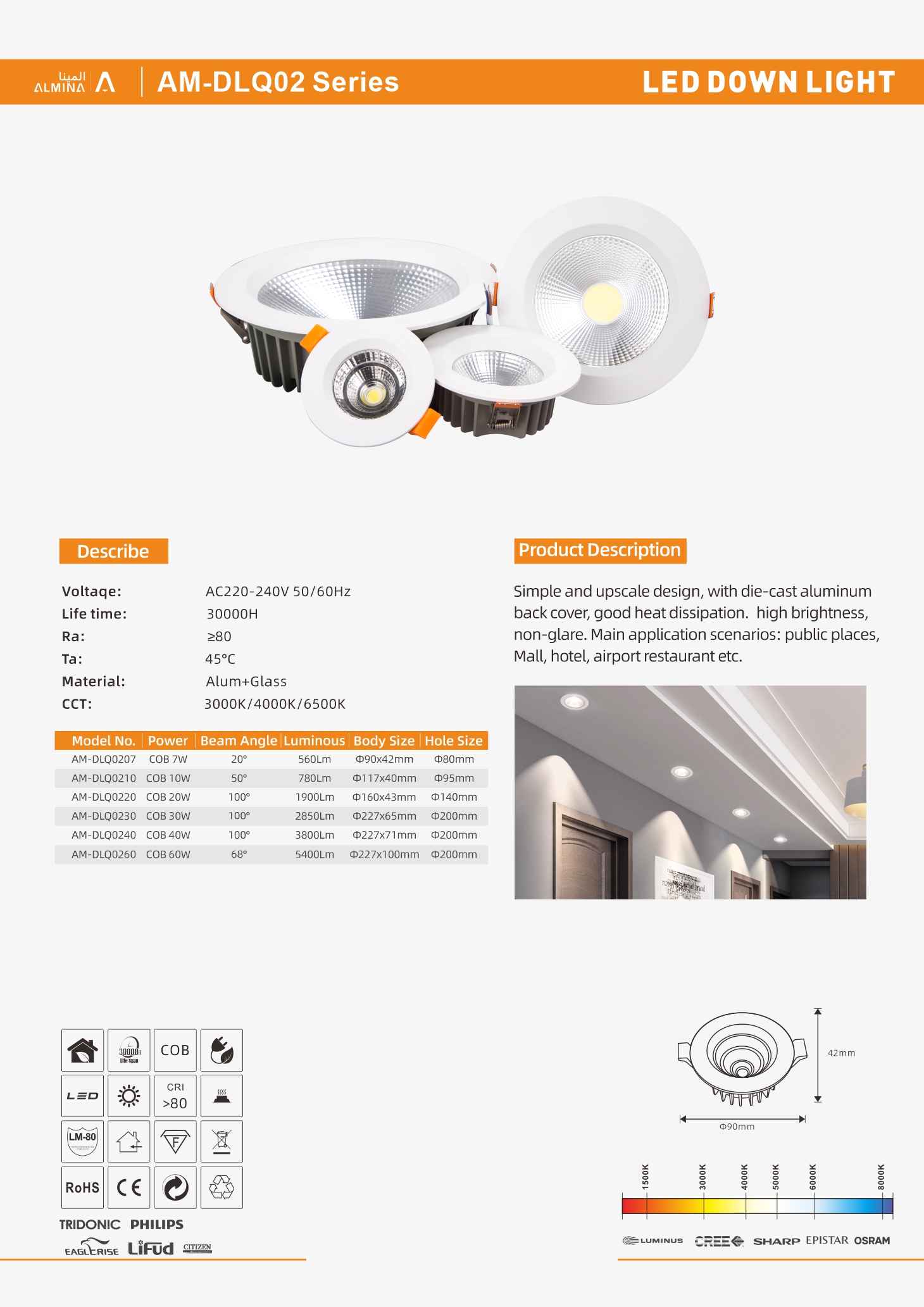

AM-DLQ02 系列 单页-1.jpg
