Downlight

Currency

Print Export

AED

Madein China

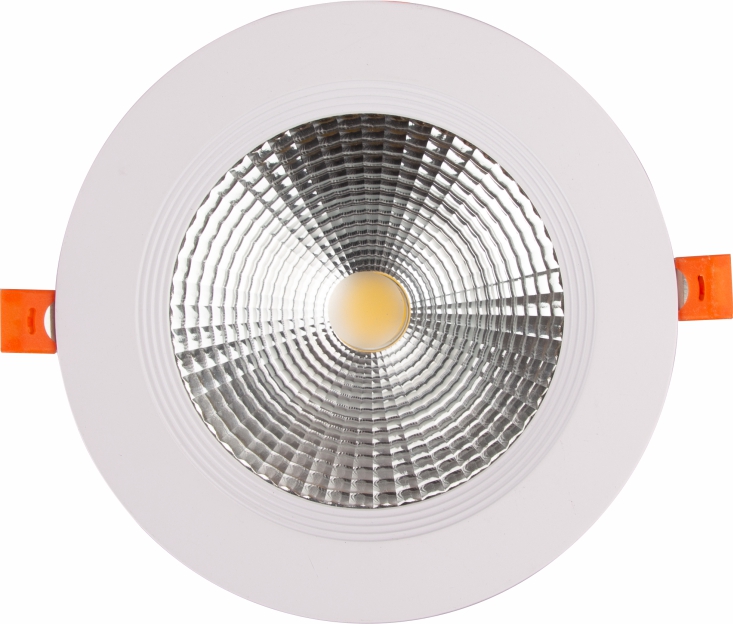

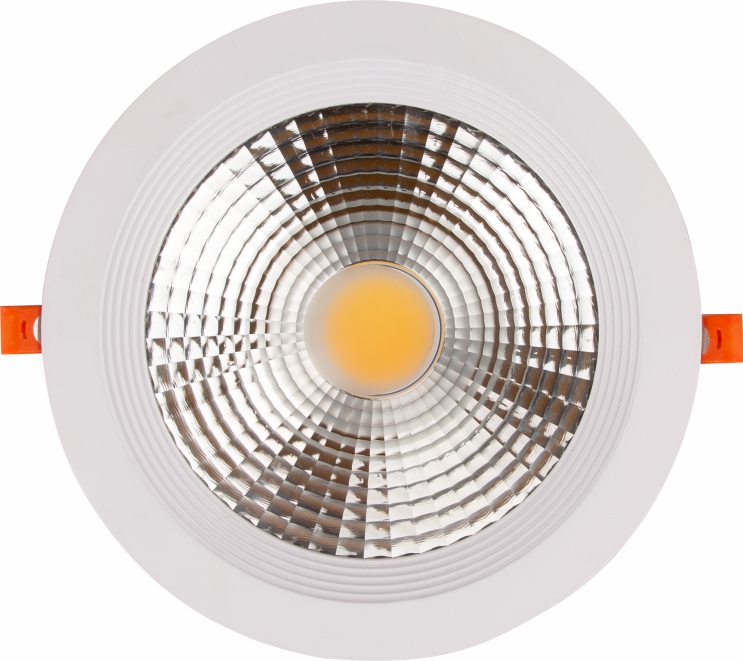

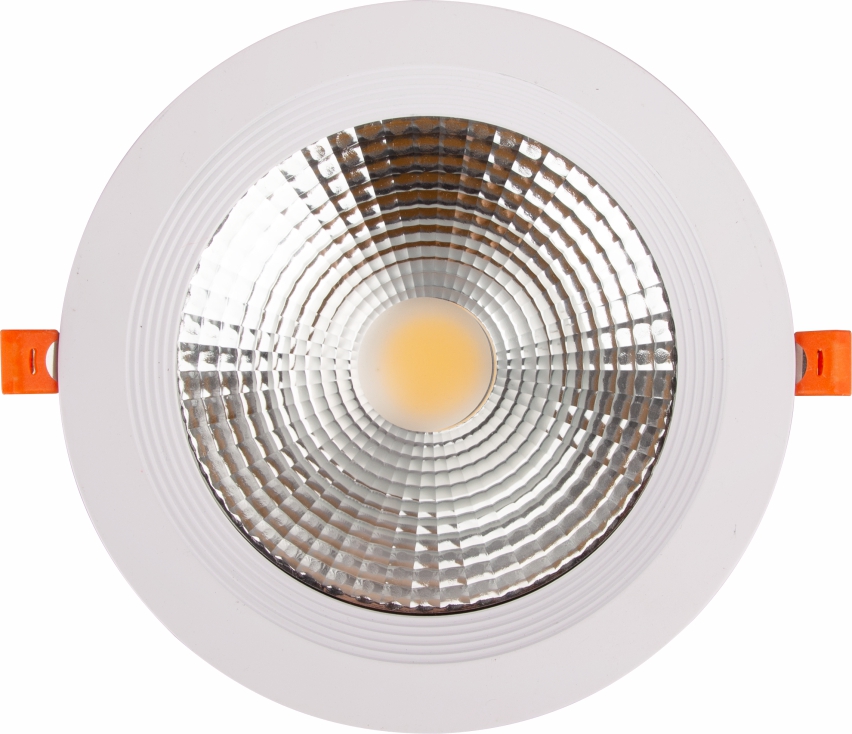

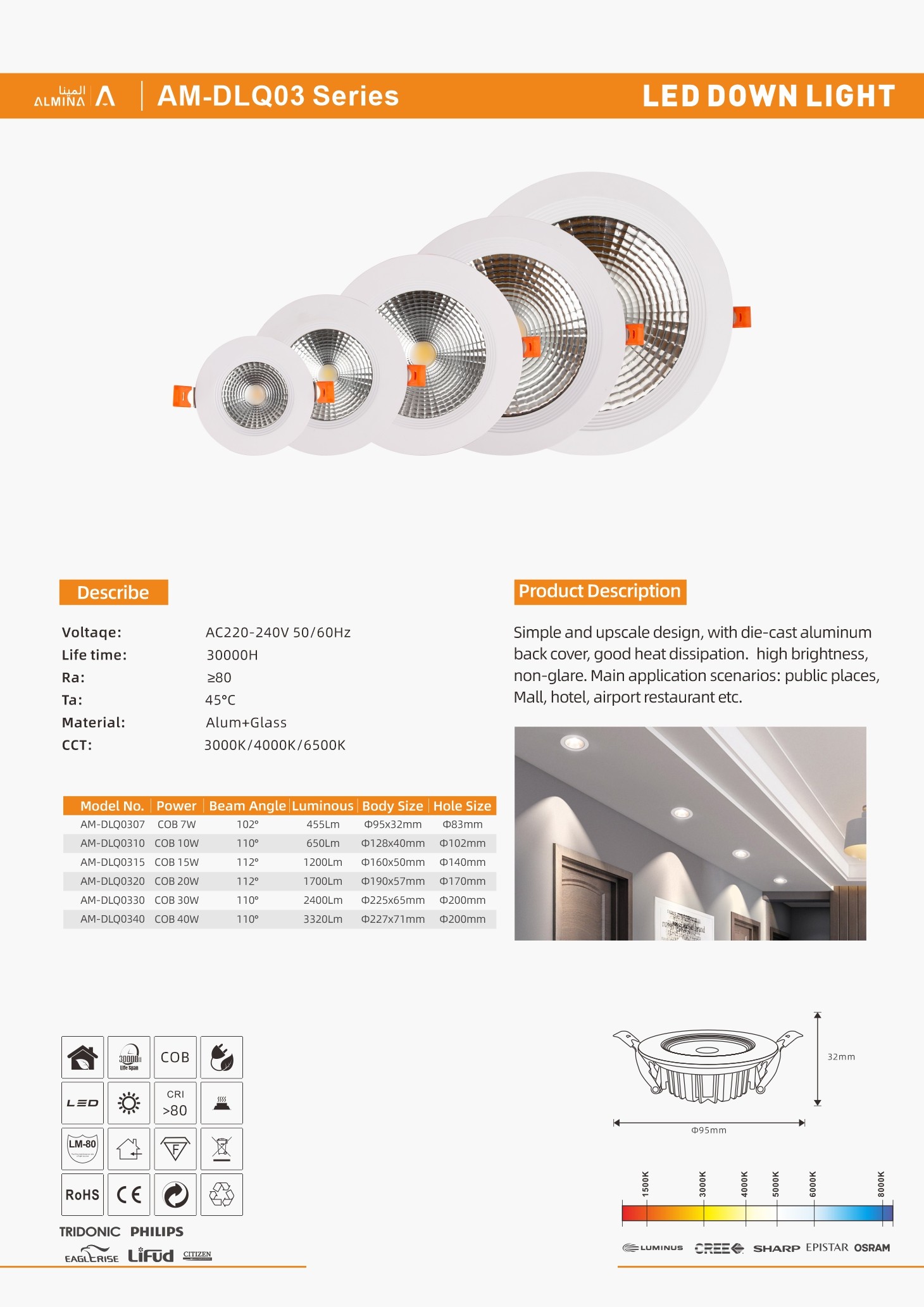

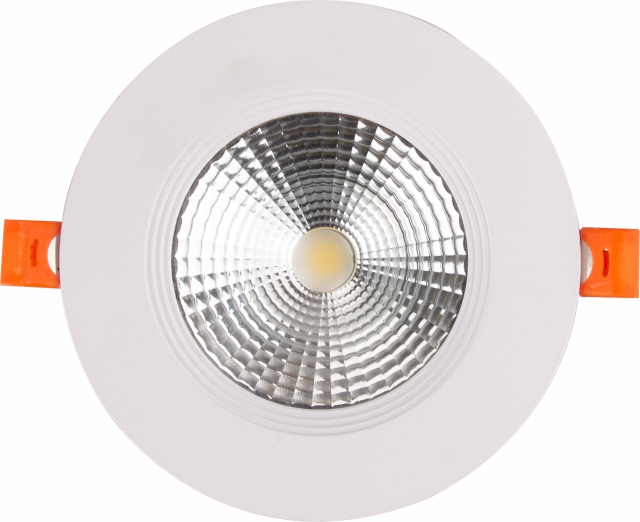

AM-DLQ03 Series

AM-DLQ0307AM-DLQ0310AM-DLQ0315AM-DLQ0320AM-DLQ0330AM-DLQ0340
Voltage: AC220-240V 50/60Hz
Operation Voltage: AC175-265V
Power: 7W
CRI: ≥80
Luminous:455Lm
Beam Angle: 102°
LED Type: COB
PF: >0.9
Surge: 1.5KV
Material: Aluminum+Glass
Body Size: Ф90x32mm
Hole Size: Ф83mm
Voltage: AC220-240V 50/60Hz
Operation Voltage: AC175-265V
Power: 10W
CRI: ≥80
Luminous:650Lm
Beam Angle: 110°
LED Type: COB
PF: >0.9
Surge: 1.5KV
Material: Aluminum+Glass
Body Size: Ф128x40mm
Hole Size: Ф102mm
Voltage: AC220-240V 50/60Hz
Operation Voltage: AC175-265V
Power: 15W
CRI: ≥80
Luminous:1200Lm
Beam Angle: 112°
LED Type: COB
PF: >0.9
Surge: 1.5KV
Material: Aluminum+Glass
Body Size: Ф160x50mm
Hole Size: Ф140mm
Voltage: AC220-240V 50/60Hz
Operation Voltage: AC175-265V
Power: 20W
CRI: ≥80
Luminous:1700Lm
Beam Angle: 112°
LED Type: COB
PF: >0.9
Surge: 1.5KV
Material: Aluminum+Glass
Body Size: Ф190x57mm
Hole Size: Ф170mm
Voltage: AC220-240V 50/60Hz
Operation Voltage: AC175-265V
Power: 30W
CRI: ≥80
Luminous:2400Lm
Beam Angle: 110°
LED Type: COB
PF: >0.9
Surge: 1.5KV
Material: Aluminum+Glass
Body Size: Ф225x65mm
Hole Size: Ф200mm
Voltage: AC220-240V 50/60Hz
Operation Voltage: AC175-265V
Power: 40W
CRI: ≥80
Luminous:3320Lm
Beam Angle: 110°
LED Type: COB
PF: >0.9
Surge: 1.5KV
Material: Aluminum+Glass
Body Size: Ф227x71mm
Hole Size: Ф200mm
