Downlight

Currency

Print Export

AED

Madein China

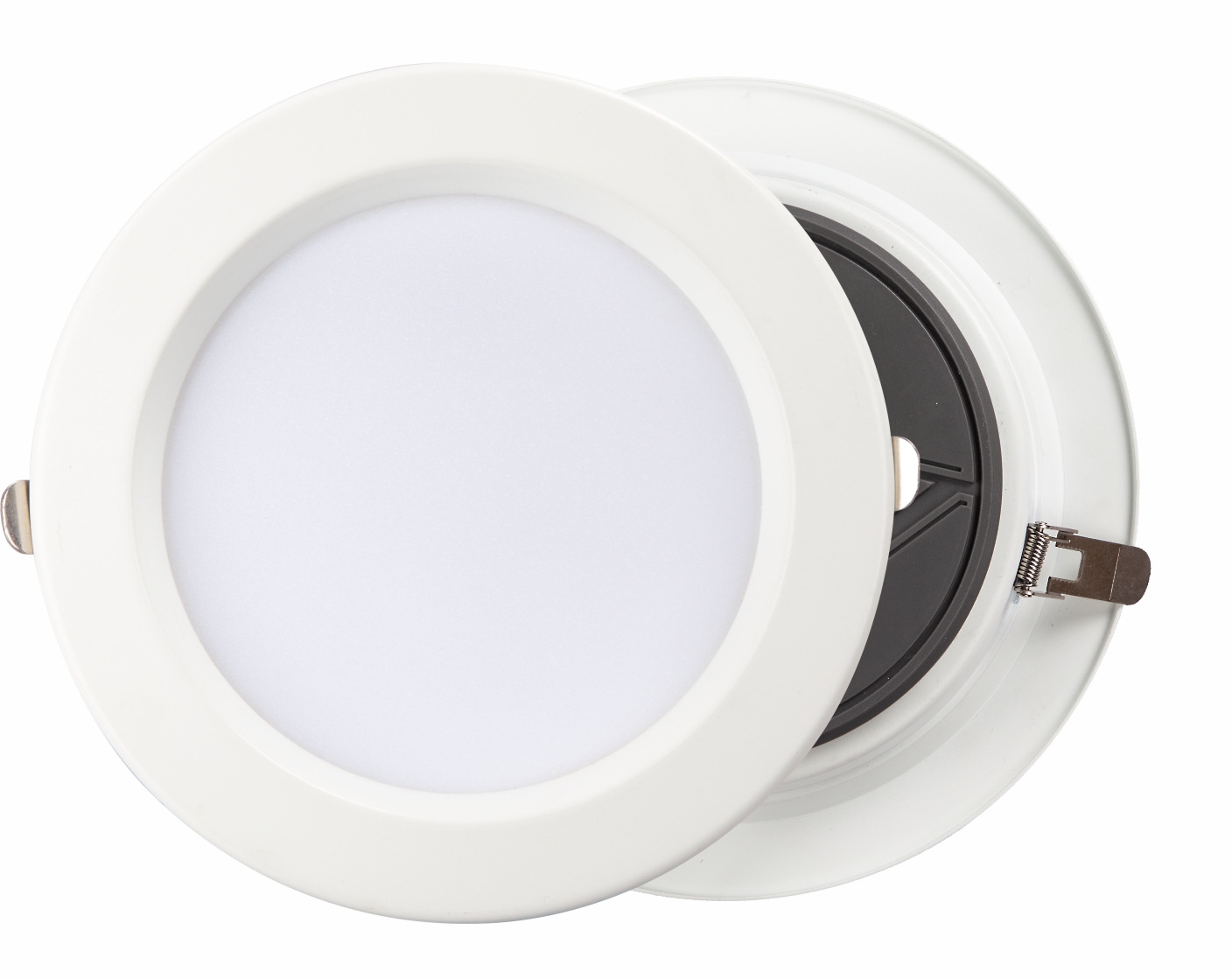

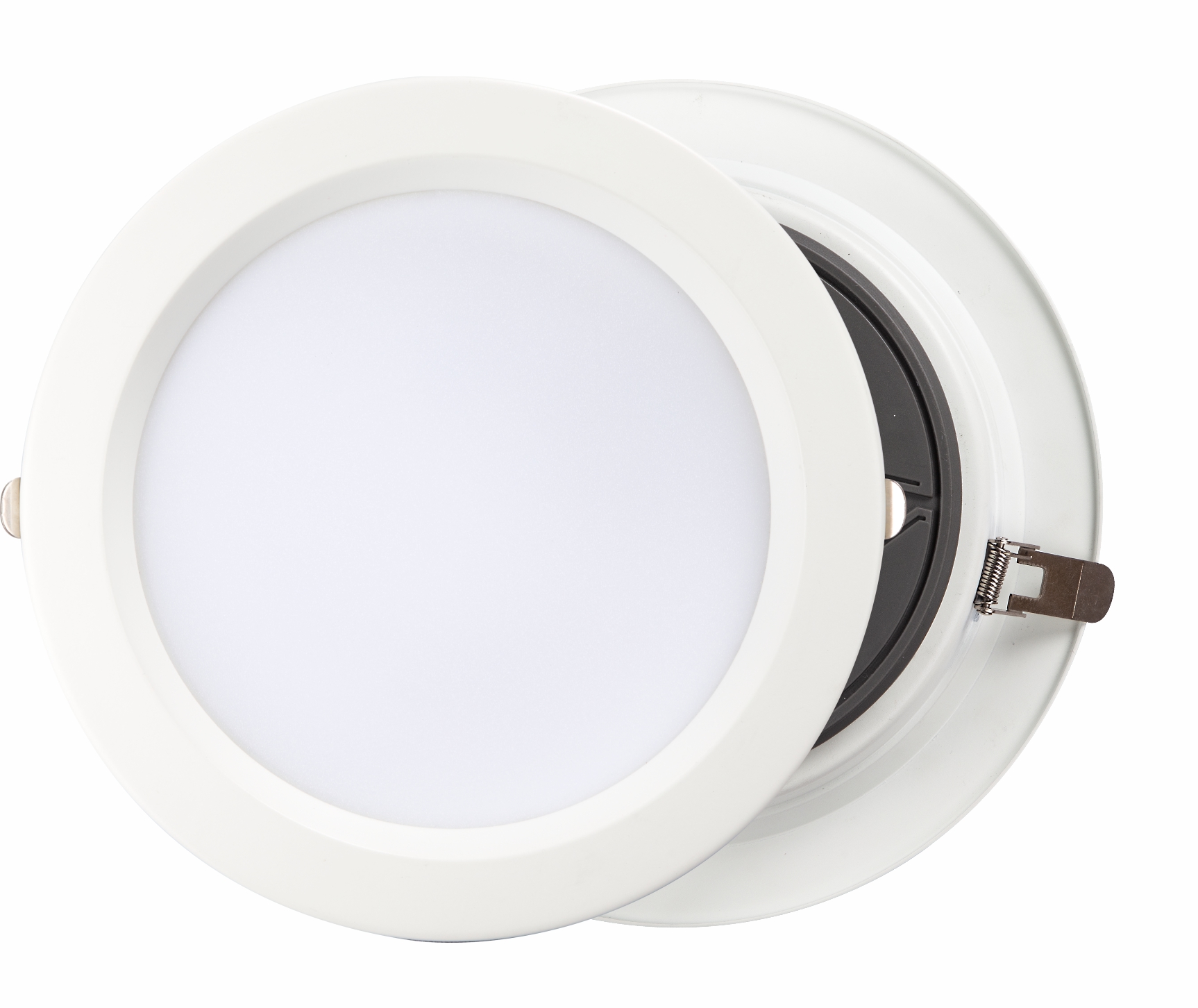

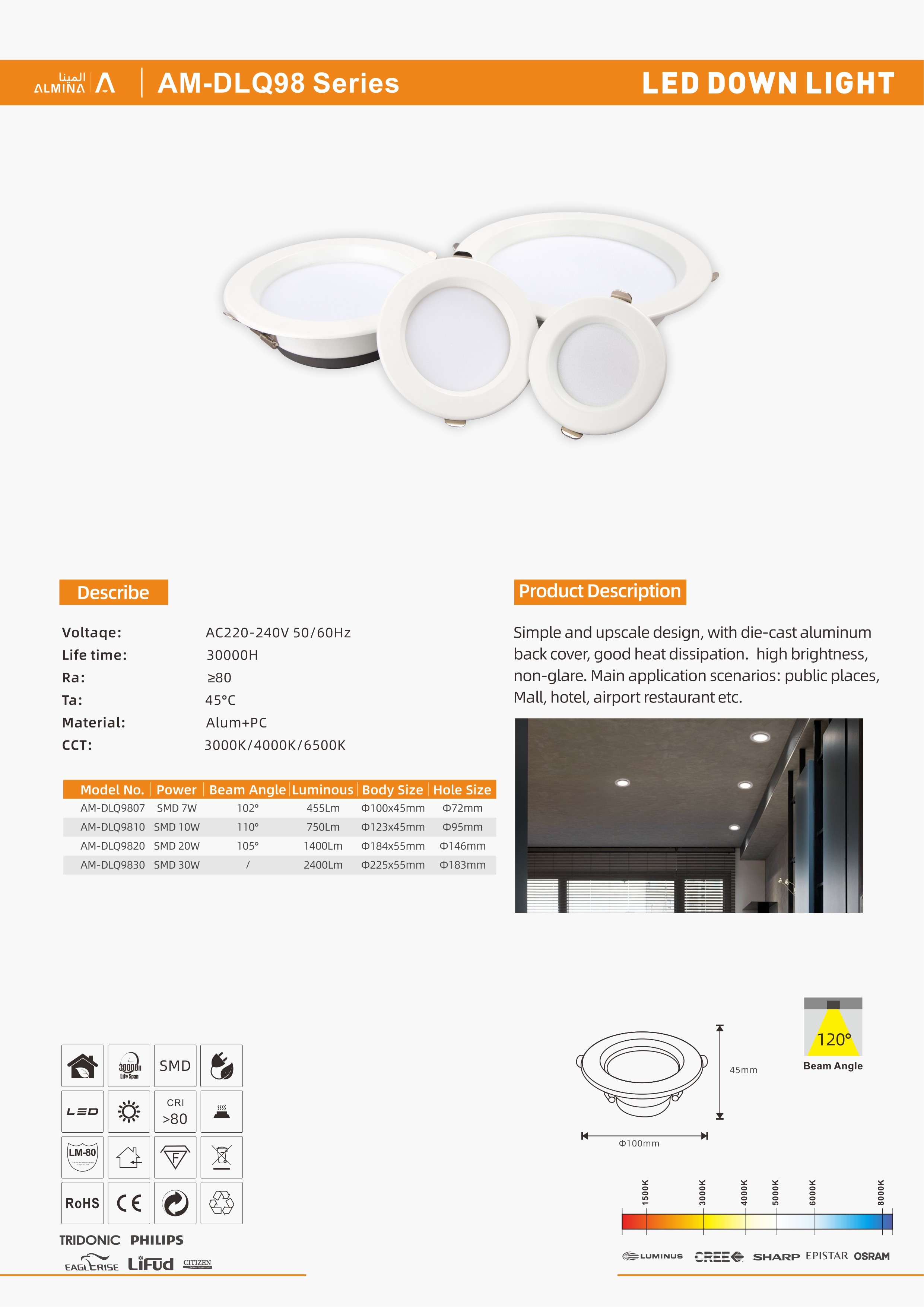

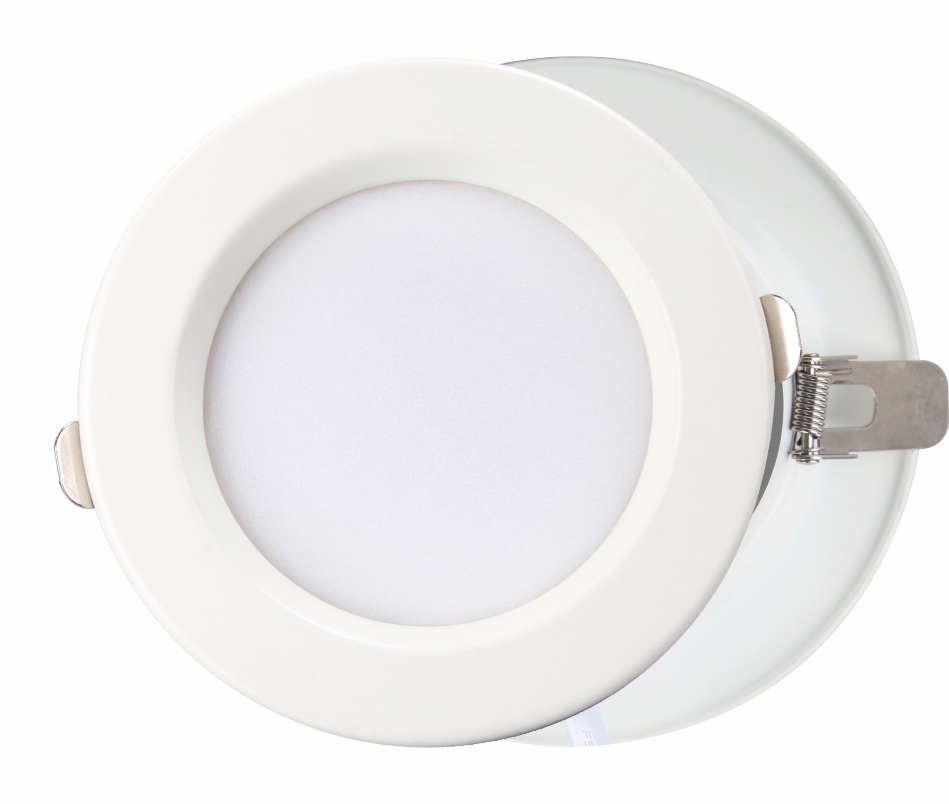

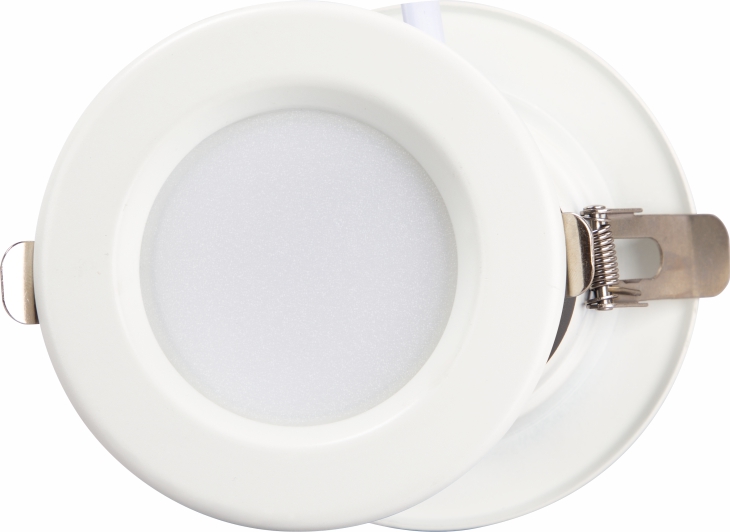

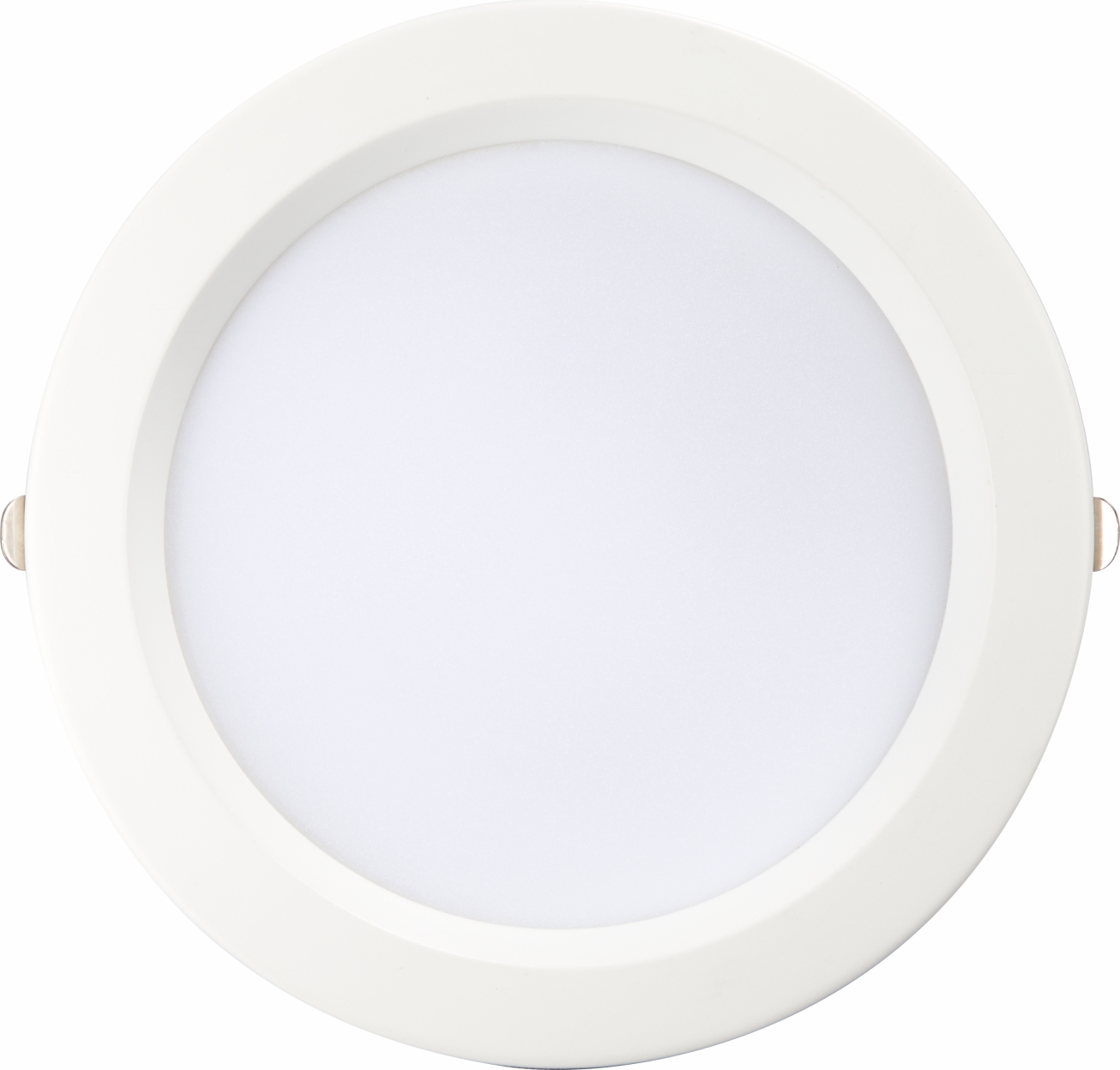

AM-DLQ98 Series

AM-DLQ9807AM-DLQ9810AM-DLQ9820AM-DLQ9830
Voltage: AC220-240V 50/60Hz
Operation Voltage: AC175-265V
Power: 7W
CRI: ≥80
Luminous:455Lm
Beam Angle: 102°
LED Type: SMD
PF: >0.9
Surge: 1.5KV
Material: Aluminum+PC
Body Size: Ф100x45mm
Hole Size: Ф72mm
Voltage: AC220-240V 50/60Hz
Operation Voltage: AC175-265V
Power: 10W
CRI: ≥80
Luminous:750Lm
Beam Angle: 110°
LED Type: SMD
PF: >0.9
Surge: 1.5KV
Material: Aluminum+PC
Body Size: Ф123x45mm
Hole Size: Ф95mm
Voltage: AC220-240V 50/60Hz
Operation Voltage: AC175-265V
Power: 20W
CRI: ≥80
Luminous:1400Lm
Beam Angle: 105°
LED Type: SMD
PF: >0.9
Surge: 1.5KV
Material: Aluminum+PC
Body Size: Ф184x55mm
Hole Size: Ф146mm
Voltage: AC220-240V 50/60Hz
Operation Voltage: AC175-265V
Power: 30W
CRI: ≥80
Luminous:2400Lm
LED Type: SMD
PF: >0.9
Surge: 1.5KV
Material: Aluminum+PC
Body Size: Ф225x55mm
Hole Size: Ф183mm
